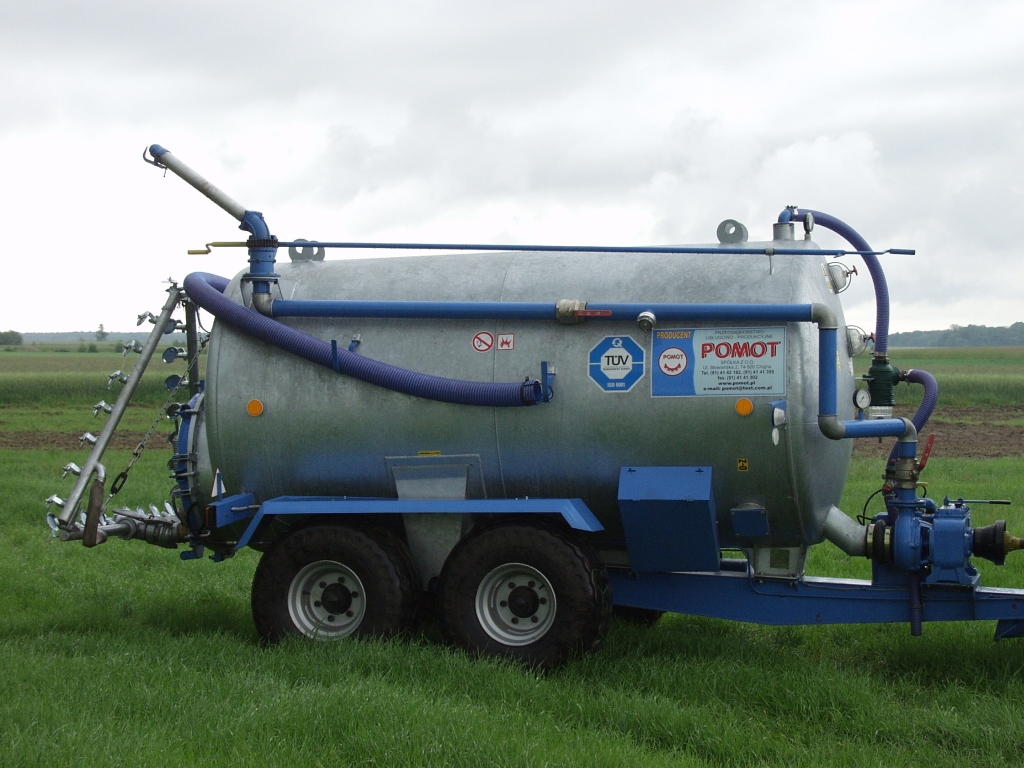

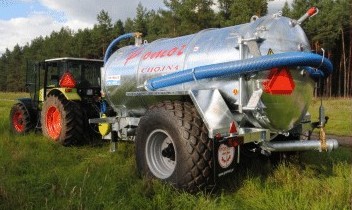

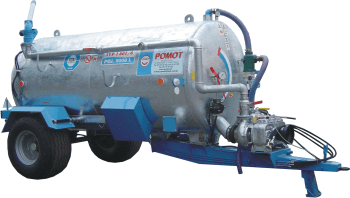

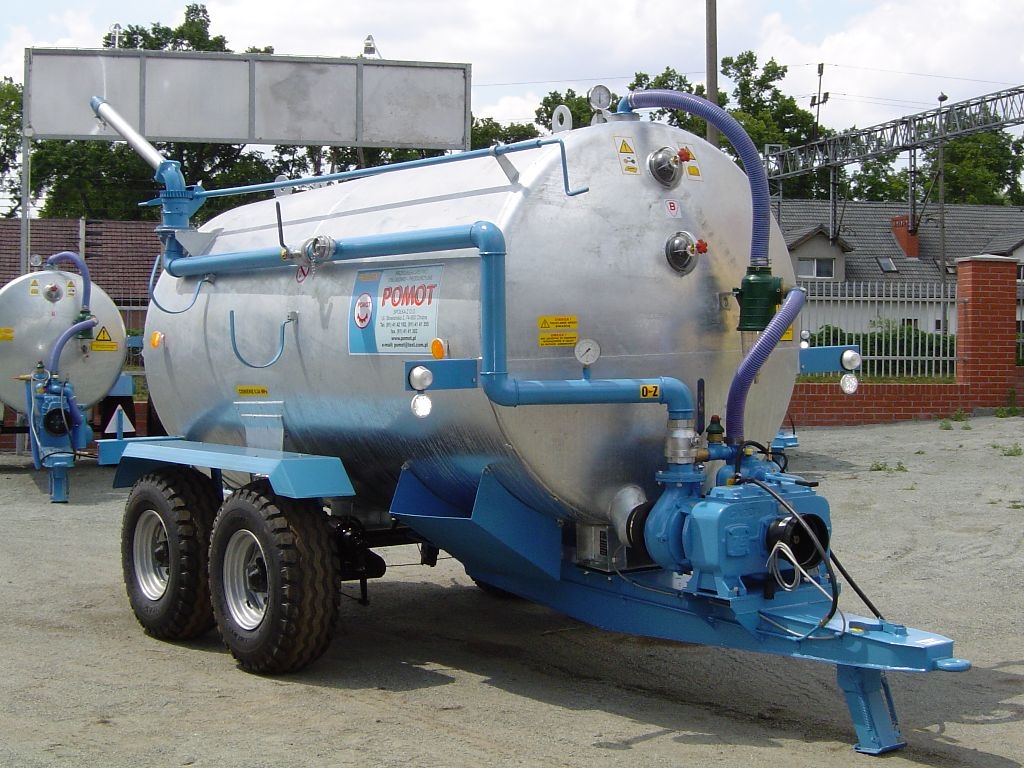

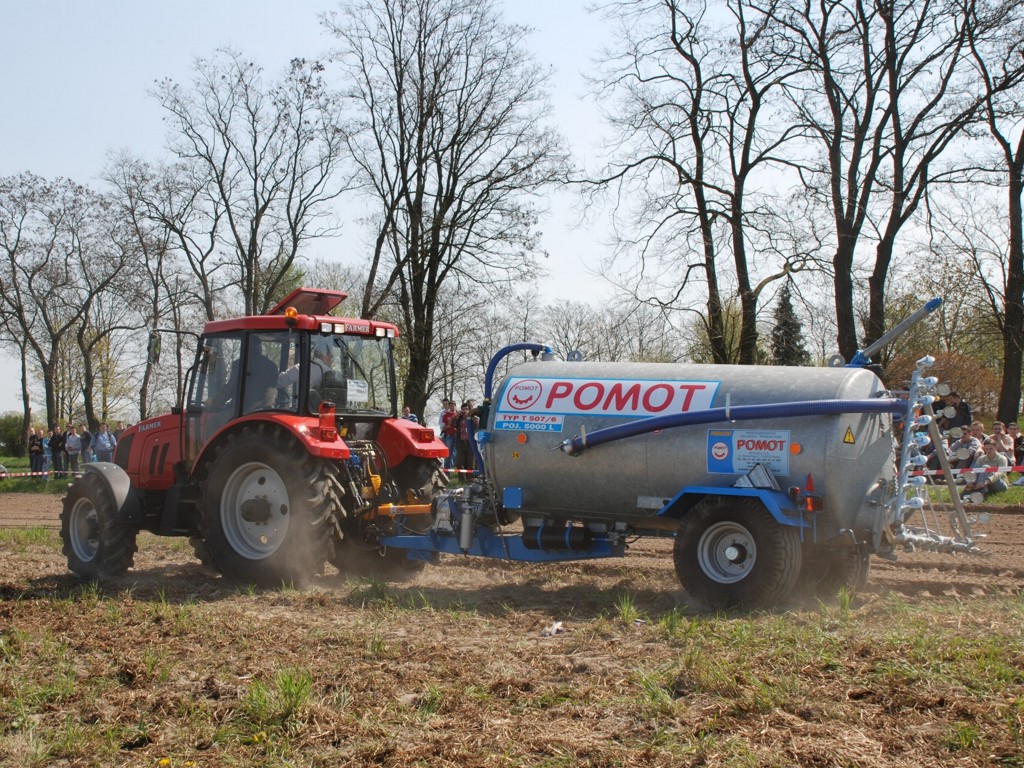

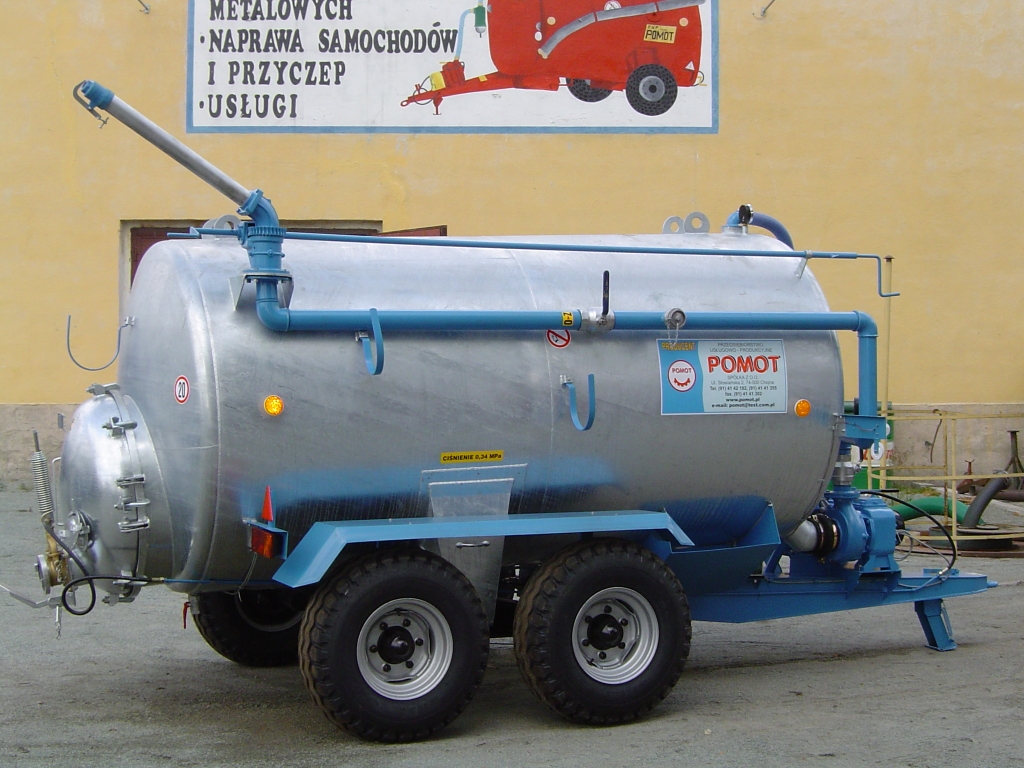

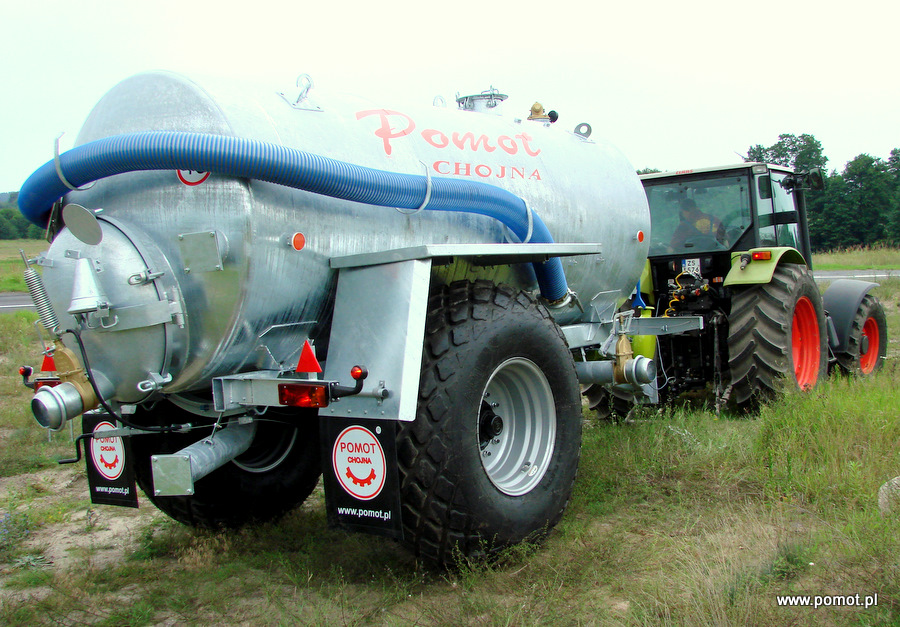

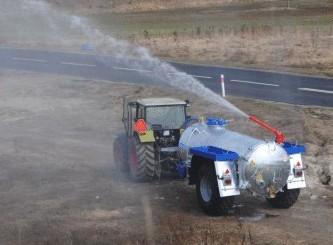

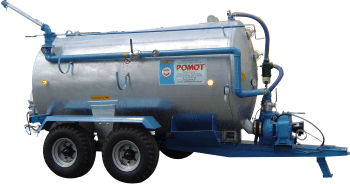

The slurry tank equipped with a gun to the slurry and water
at capacities of

  • 5,000 liters
  • and 6,700 liters


Technical and operational data:


Capacity:
5000
 6700
Lenght:
 5080 mm
5130 mm
Width:

 2130 mm

2370 mm
Height:
2235 mm
2480 mm
Capacity:
5080 liters
6700 liters
Tyres:

500/50x17

400/60 x 15,5
Axles:
1 axle
1 axle (tandem)
Wheel track:
1650 mm
1950 mm
Emphasis on the hook:
15 kN
14kN
Kerb weight:
1500 kg
2165 kg
Total weight:
6500 kg
8865 kg



Filling time:

  • GARDA tank kit, and 75C:
  • compressor MEC-4000 - max.5 min
  • compressor MEC-5000 - max.4 min
  • compressor MEC-6700 - max.4 min



Specifications and standard equipment:

1. The tank is made of 5mm thick sheet
2. The self-supporting construction.
3. Tank hot dip galvanized inside and outside.
4. Painted drawbar.
5. Axial wheelset -two wheels
6. Gear GARDA 75 C
- Compressor MEC
- Centrifugal pump
7. Fire Hose Connection W52

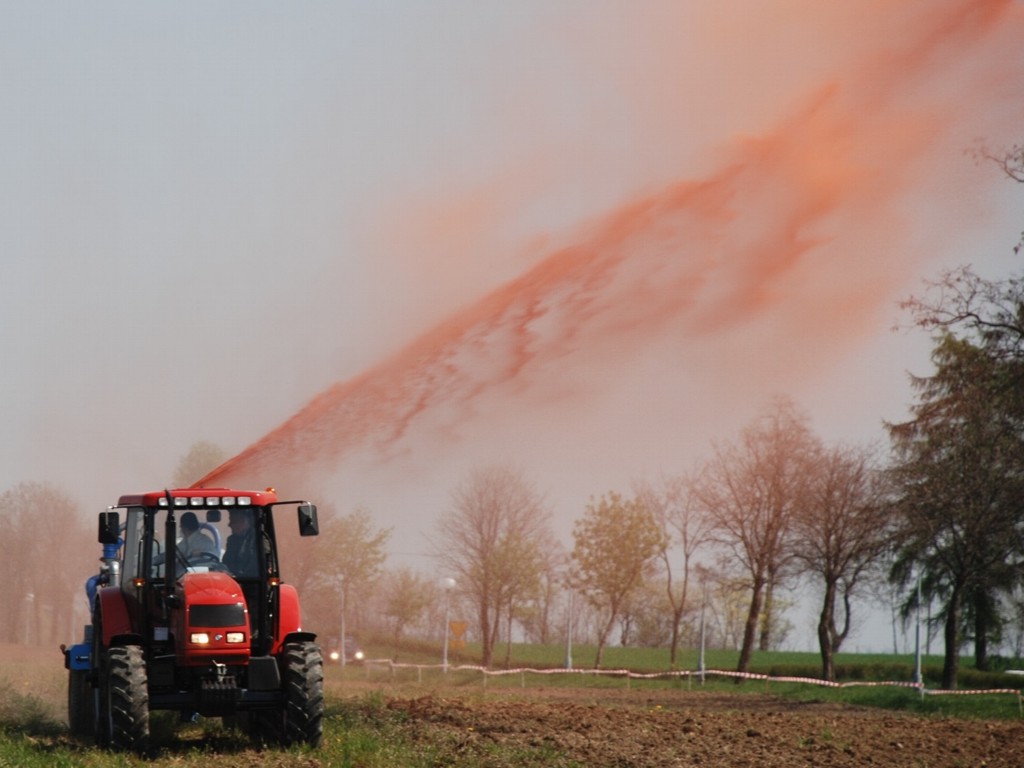

8. 3 "gun to the slurry - the width of bottling up to 50m.
9. Mechanical control to slurry gun.
10. Regulator width and distance of slurry spill.
11. The double-ball valve protecting for overflowing the compressor).
12. Siphon Ø60 withclarifier and drain tap
13. Fittings 4 "for vehicles with a capacity of 4000 and 5000 L Fittings 6"    for cars with a capacity of 6700 and 8000 L
14. Oil separator / silencer.
15. Handle for the distinguished array.
16. Manowakuometr.
17. Lower hitch latch at a height of 400 mm
18. Exchangeable ear hook (screwed)
19. Mechanically controlled parking support.
20. Float level indicator on the front of the tank.
21. Electrical system 12V connector
22. The lighting required by the provisions of the Road Traffic.
23. Service brake – one way, Air.
24. Power cables and connectors.
25. Handbrake parking.
26. Hose 4 "(O 110) for cars with a capacity of 4,000 and 5,000 liters
27. Snake 6 "(O 150) for cars with a capacity of 6,700 and 8,000 liters
28. With a suction basket - the length of suction hose 6 meters
29. Grab the hoses - 5 pcs
30. Holder for a container of oil.
31. Main drain valve with diameter - 4 " for vehicles at capacity 4000         and 5000 L - 6" for vehicles at capacity . 6700 L hydraulically control.
32. The rear hatch diameter - 500mm with a capacity for cars 4000          and 5000l. - 900 mm with a capacity for cars, 6700 and 8000L
33. The device bottling - bucket poured
34. shaped pattern POMOT 94, width of the filling from 12 to 14m.
35. Metallic painted fenders.
36. Pressure and underpressure safety valve.
37. Blanked rear spigots tap 4 ".
38. Two side connectors on the right and left side, one of them is equipped with an inlet tap 3/ 4 ".
39. Certificate of approval - for registration and  moving on public roads      at speeds up to 25km / h



ADDITIONAL EQUIPMENT

• To facilitate the maneuvering of the slurry tank with this capacity and reduce the marks on turnin back the vehicle can be equipped with rear-wheel steered.
• The vehicle in frame construction can be adapted to mount the applicator soil fertilization with working width from 2.5 m to 4m. As well as soil fertilization applicator, made in the dragged hoses system (see accessories).



Gun for SLURRY MAY BE USED IN ALL BRANDS POMOT waste removal cars with different capacities.
