The slurry tankbrand POMOT at capacity 10000liters


TypeT546/A-asuniaxialanduniaxialspring
TypeT-546 -asa tandem, twoaxlesspring or BOGIE suspension
frame andself-supporting construction

The slurry tankbrand POMOT TypeT546/A
-Capacity10000liters
- uniaxial or asingle axlespring frame andself-supporting construction



Technicalandoperational data:

  • length 7030mm

  • width 2500mm

  • height from 2435 to 2472 mm

  • withtires 500/60 x 22,5; 550/60 x 22,5;(depending on version)

  • anumber ofaxis 1

  • wheel track 1900 mm

  • emphasis on the hook30 kN

  • 10000liters capacity

  • curb weight2900 kg

  • total weight 12900 kg

  • spreading reach
  • with a spoon max. 14 m
  • Traktor power 74 kW (100KM)
  • time to fill tankbythe compressor

MEC 9500 or KD 10000 max 5 min.

MEC or KD 8000 max.6 min

MECcompressor9500will beavailablefromOctober2009.



The slurry tank type T 546 / A at capacity 10000 liters is a completely equipped machine ready to work. It doesn’t need any additional equipment to work.

The vehicle is available in four versions: MINIMUM, STANDARD, CLASSIC and PREMIUM.



MINIMUM version has acompressorat capacity 8000L/min, and a pouring spoonwith thesplashplate. It has nosuction hose6m.


STANDARD versionis theimplementation ofthe standarddescribedbelow.

CLASSIC version has larger tires inrelation to the STANDARD version and an additionallatchsidetofillthe vehicle.
PREMIUM
version has largertiresthan STANDARD and an additionallatchside to fillthe tank, oil tank5L, a triangular andpto.



Specificationsand standard equipment:



  1. The tankis madeof5mm thicksheetwithadditionalreinforcements

  2. Construction of the slurry tank:

  • Self-supportingconstructionof the vehicle-towing barattached to thereinforcedsupportsinthe tank.

  • Frame construction - tankmountedona framemadefrom sectionclosed

  1. Tankhot dip galvanizedinside andoutside. Insidethe containerpierwithreinforcingframes.

  2. Paintedtowing bar or the frame.

  3. Wheelsetsingle axle, two wheels 500/60 x 22,5

  4. Compressorat capacity 10000ltr./ min. (flowability of air)

  5. The double-ballvalve protecting for overflowing the compressor.

  6. Galvanizedt overflow tank with sight glassanddraintap

  7. Oil catcher/silencer.

  8. Manowakuometr.

  9. Lowerhitchlatchat height of400mm

  10. Exchangeableearhook(screwed)

  11. Mechanicallycontrolledparking support.

  12. Floatlevel indicatoron the frontof the tank.

  13. Electrical system12Vconnector

  14. The lightingrequiredby the provisions ofthe Road Traffic.

  15. Service brake- one-way,air.

  16. Handbrakeparking.

  17. Hose6 "(ø 150)of thesuctionstrainer-suctionhose length6m.

  18. Maindrainvalvewitha diameter of6" with the hydraulic control.

  19. The rearhatchwitha diameter of900mm.

  20. Bottlingdevice-spoonshapedpatternpouredPOMOT94, fillingthe widthfrom 12to14m.

  21. Painted metallicfenders.

  22. Pressure and underpressure safety valve.

  23. Blankedrear spigotstap6 ".

  24. Twosideconnectorson the rightand leftside, one of them is equipped withaninlet tap3/ 4".

  25. Certificate ofapproval-forregistrationand movingon public roadsat speeds up to25km/h

  26. CE Mark



ADDITIONALEQUIPMENT

  • On request,a vehiclecanbeadaptedtomoveat a speed of40km/h

  • On request,a vehicle can be equiped in23.1x26 or700/50x26.5 tires

  • The vehicle in frame construction can beadaptedto mounttheapplicatorsoil fertilizationwithworking widthfrom2.5mto4m. As well as soil fertilization applicator, madein the dragged hosessystem (seeaccessories)



WARNING!

  • The slurry tanktypeT546/A,at capacity 10000litersis also available ona sprungaxlesuspension.

  • Vacuum truckat capacity10000liters ofthe suspensionisalsoTANDEMwhichis describedbelow:

10000 pomot beczkowóz güllefass slurry tanker









10000 pomot beczkowóz güllefass slurry tanker tandem
ico 03Downloads

Specyfikacja - PDF
Ulotka informacyjna - PDF

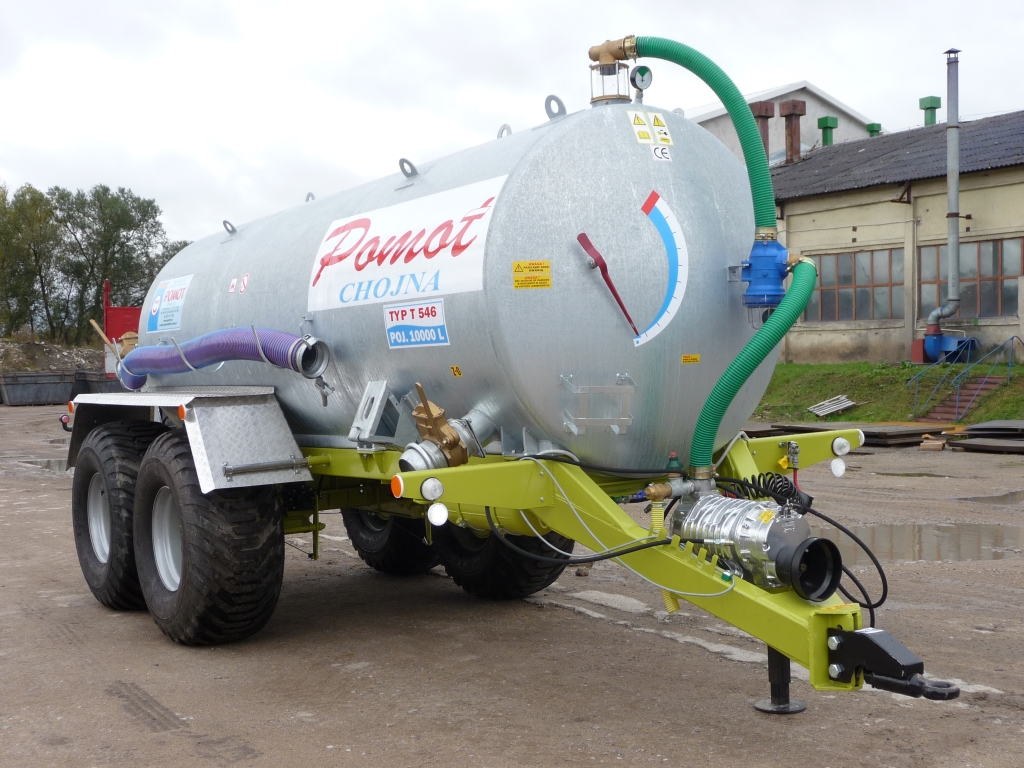

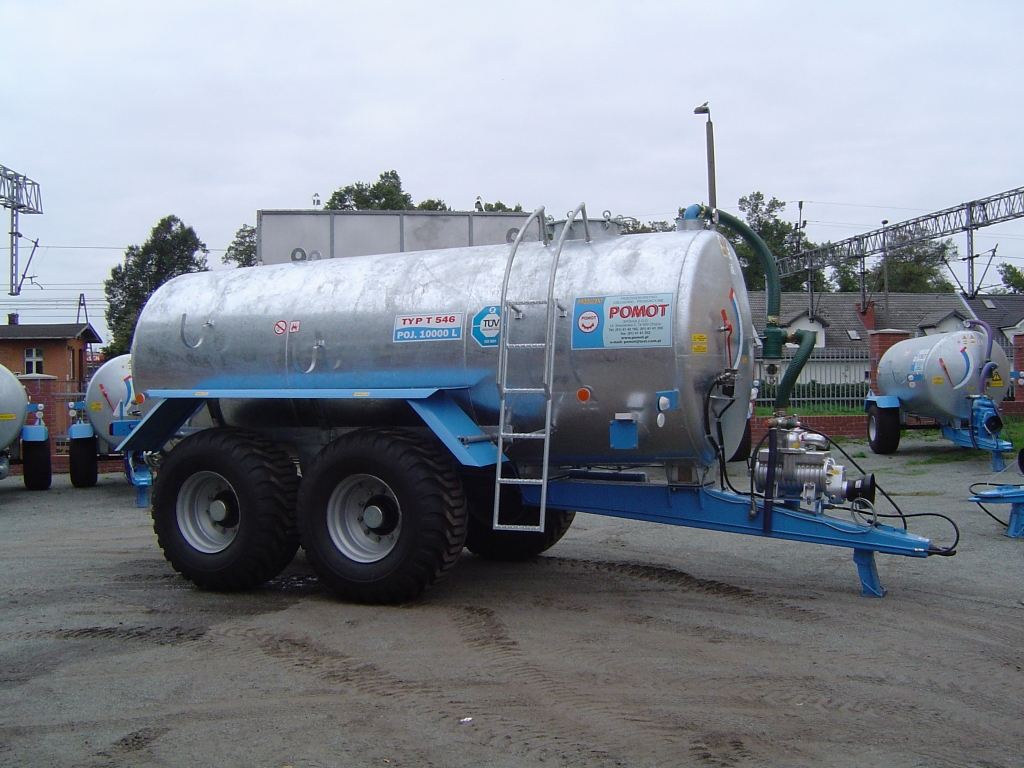

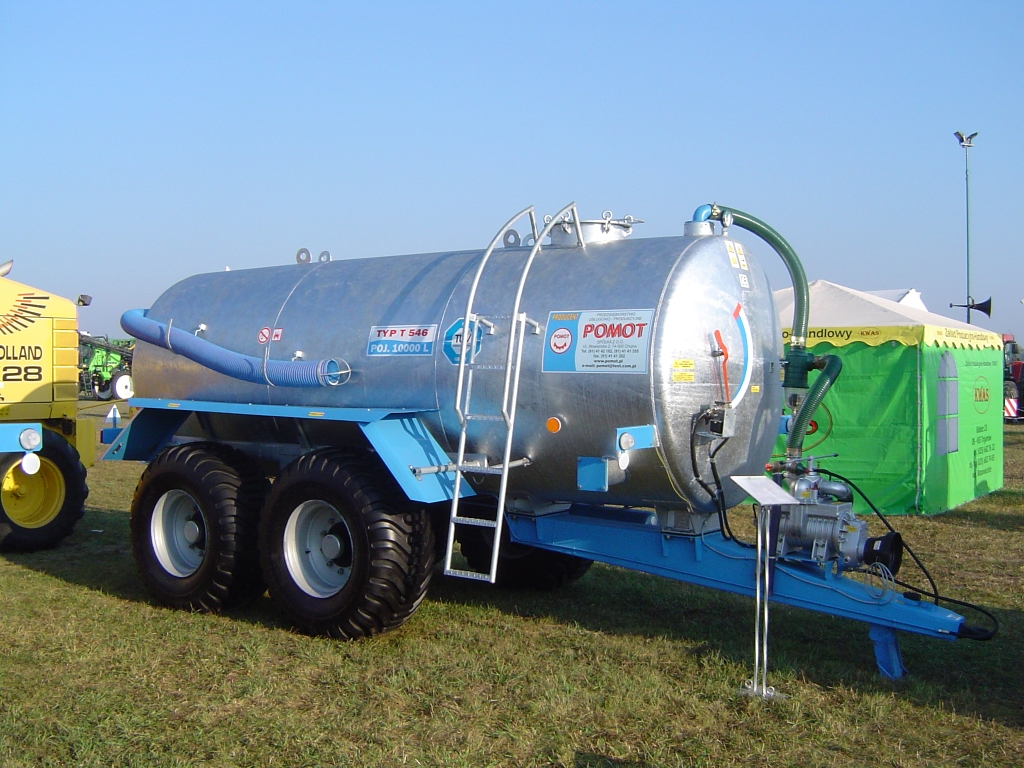

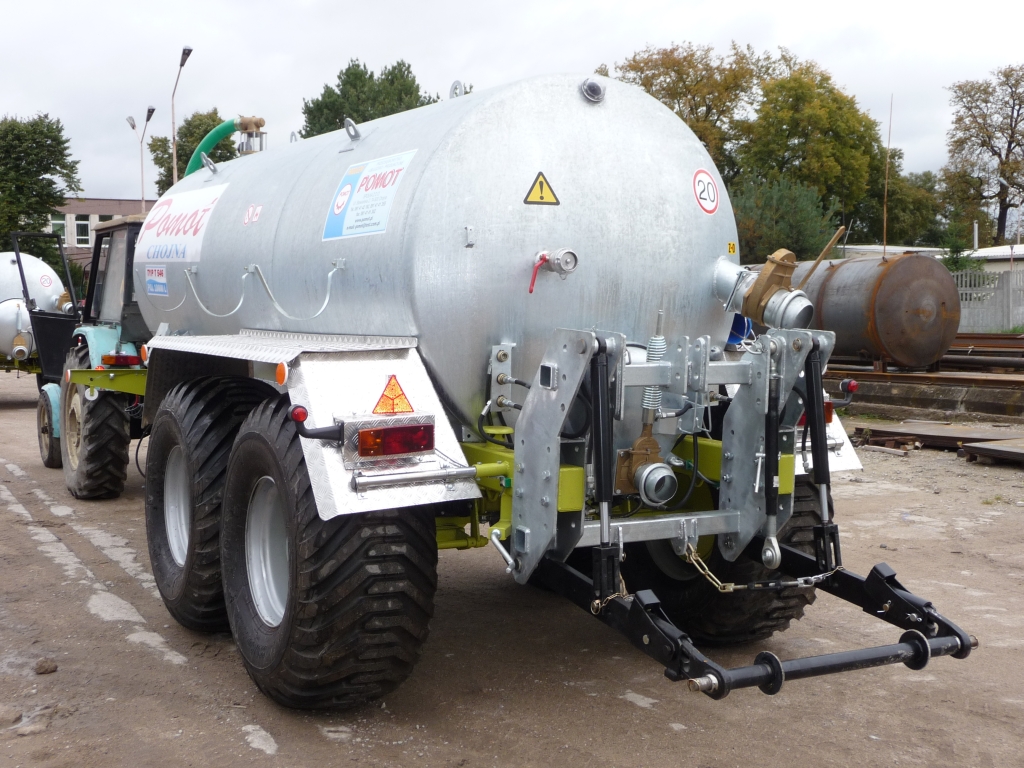

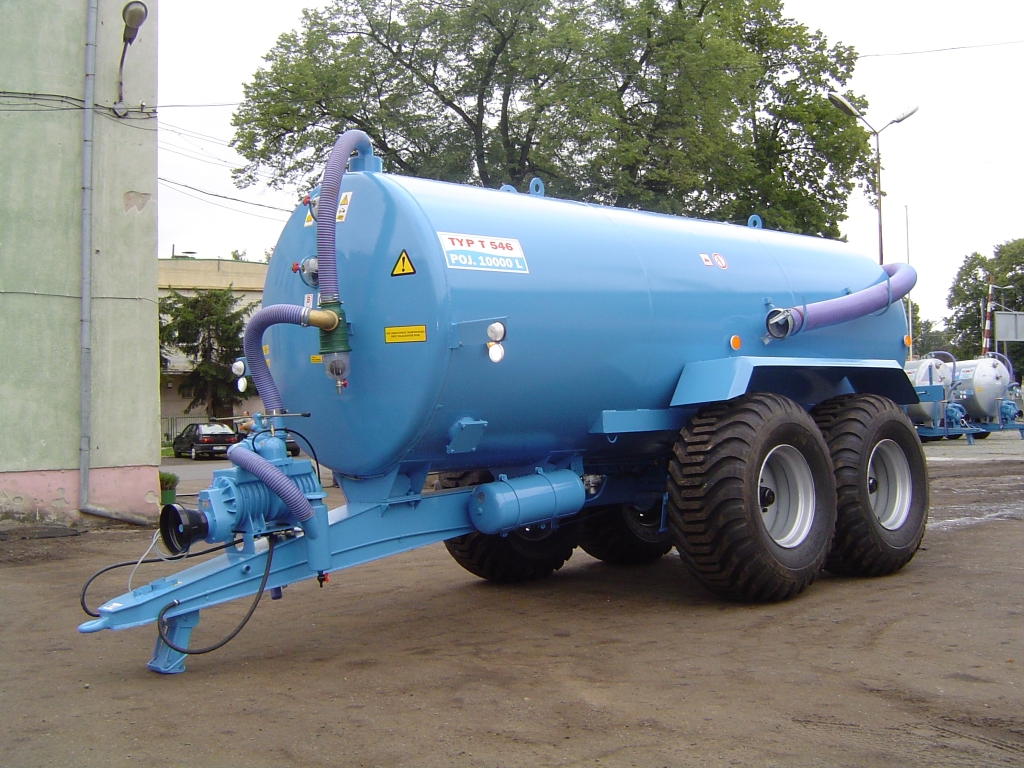

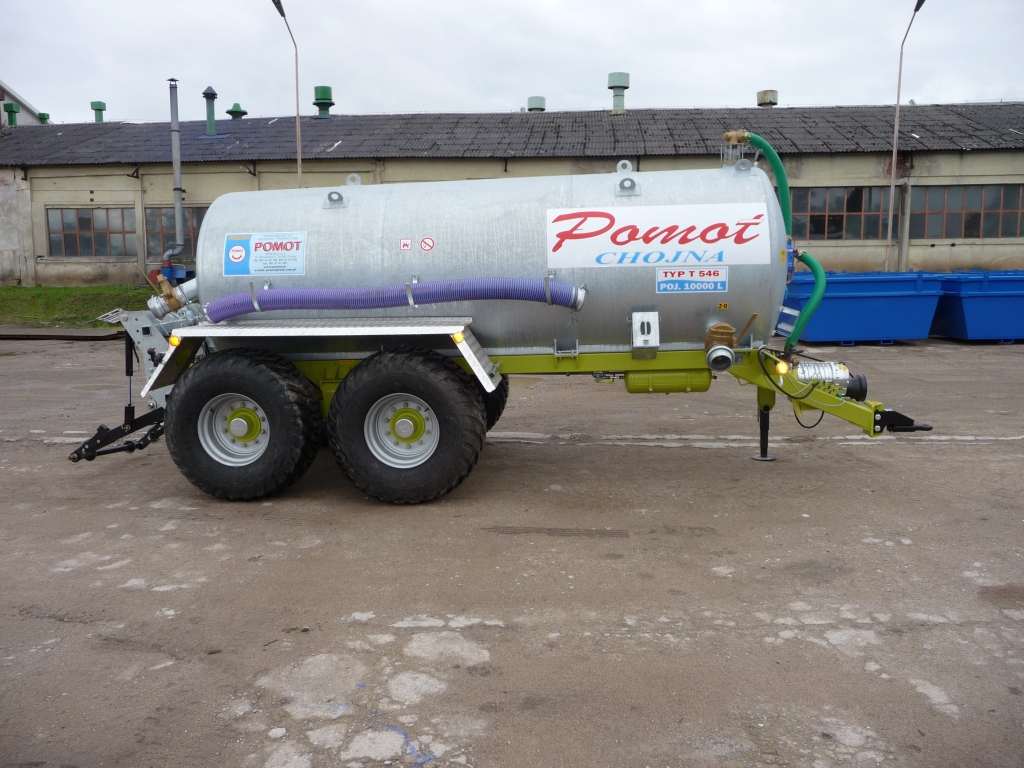

The slurry tankbrandPOMOT TypeT546-Capacity10000liters
- on theTANDEM suspension
-thesuspension withtwoaxlesspring
-or on BOGIE suspension frame andself-supporting construction



Technicalandoperational data:

  • length 6785mm

  • width from 2435mm to 2472mm

  • height from 2640 to 2663mm

  • with tires 500/60 x 22,5; 550/60 x 22,5; (depending on version)

  • anumber ofaxis 1 (central axis) Tnadem or two sprung axles

  • wheel track 1900 mm

  • emphasis on the hook16 kN

  • 10000liters capacity

  • curb weight3200 kg

  • total weight 13200 kg

  • spreading reach

  • with a spoon max. 14 m

  • Traktor power 63 kW (84KM)

  • atime to fill tankbythe compressor

    MEC 9500 or KD 10000 max.5 min

    - MEC or KD 8000 max.6 min

9500 MECcompressorwill beavailablefromOctober2009.



The slurry tanker type T 546 at capacity 10000 liters is a completely equipped machine ready to work. It doesn’t need any additional equipment to work.

The vehicle is available in four versions: MINIMUM, STANDARD, CLASSIC and PREMIUM.



MINIMUM version has acompressorat capacity 8000L/min, and a pouring spoonwith thesplashplate. It has nosuction hose6m.
STANDARD version is theimplementation ofthe standarddescribedbelow.
CLASSIC version has larger tires inrelation to the STANDARD versionandan additionallatchsidetofillthe vehicle.
PREMIUMversionhaslargertiresthan STANDARD and an additionallatchside to fillthe tank, oil tank 5L, a triangular andpto



Specificationsand standard equipment:



  1. The tankis madeof5mm thicksheetwithadditionalreinforcements

  2. Construction of the slurry tank:

  • Self-supportingconstructionof the vehicle-towing barattached to thereinforcedsupportsinthe tank.

  • Frame construction - tankmountedona framemadefrom sectionclosed

  1. Tankhot dip galvanizedinside andoutside. Insidethe containerpierwithreinforcingframes.

  2. Paintedtowing bar or the frame.

  3. Wheelset:

  • TANDEMwheelsetwith a reinforcedstructure(four wheels 500/60 x 22,5)

  • Two spring axles (four wheels 500/60 x 22,5)

  1. Compressorwith a capacity of10000ltr./ min. (flowability of air)

  2. The double-ballvalve protect for overflowing the compressor.

  3. Galvanizedoverflow tank with sight glassanddraintap

  4. Oil catcher/silencer.

  5. Manowakuometr.

  6. Lowerhitchlatchat a height of400mm

  7. Exchangeableearhook(screwed)

  8. Mechanicallycontrolledparking support.

  9. Floatlevel indicatoron the frontof the tank.

  10. Electrical system12Vconnector

  11. The lightingrequiredby the provisions ofthe Road Traffic.

  12. Service brake- one-way,air.

  13. Handbrakeparking.

  14. Hose6 "(ø 150)of thesuctionstrainer-suctionhose length6m.

  15. Maindrainvalvewitha diameter of6" with the hydraulic control.

  16. The rearhatchwitha diameter of900mm.

  17. Bottlingdevice-spoonshapedpatternpouredPOMOT94, fillingthe widthfrom 12to14m.

  18. Painted metallicfenders.

  19. Pressure and underpressure safety valve.

  20. Blankedrear spigotstap6 ".

  21. Twosideconnectorson the rightand leftside, one of them is equipped withaninlet tap3/ 4".

  22. Certificate ofapproval-forregistrationand movingon public roadsat speeds up to25km/h

  23. CE Mark



ADDITIONALEQUIPMENT

  • On request,the vehiclecanbeadaptedtomoveat speed of40km/h

  • Tofacilitate themaneuvering ofthe slurry tankwiththiscapacityand reduce the marks on turnin backthe vehiclecan beequipped withrear-wheelsteered.

  • The vehicle in frame construction can beadaptedto mounttheapplicatorsoil fertilizationwithworking widthfrom2.5mto4m as well as soil fertilization applicator, madein the dragged hosessystem (seeaccessories)



The slurry tankcan beequipped withmanyaccessories (seeaccessories)
