The slurry tank brand POMOT
at capacity 13000 liters
Type T 546 / 1 – in TANDEM version or two axles spring
type T-513 – on BOGIE suspension in
frame and self-supporting construction

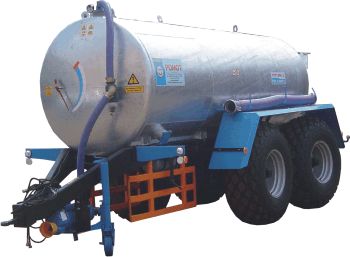

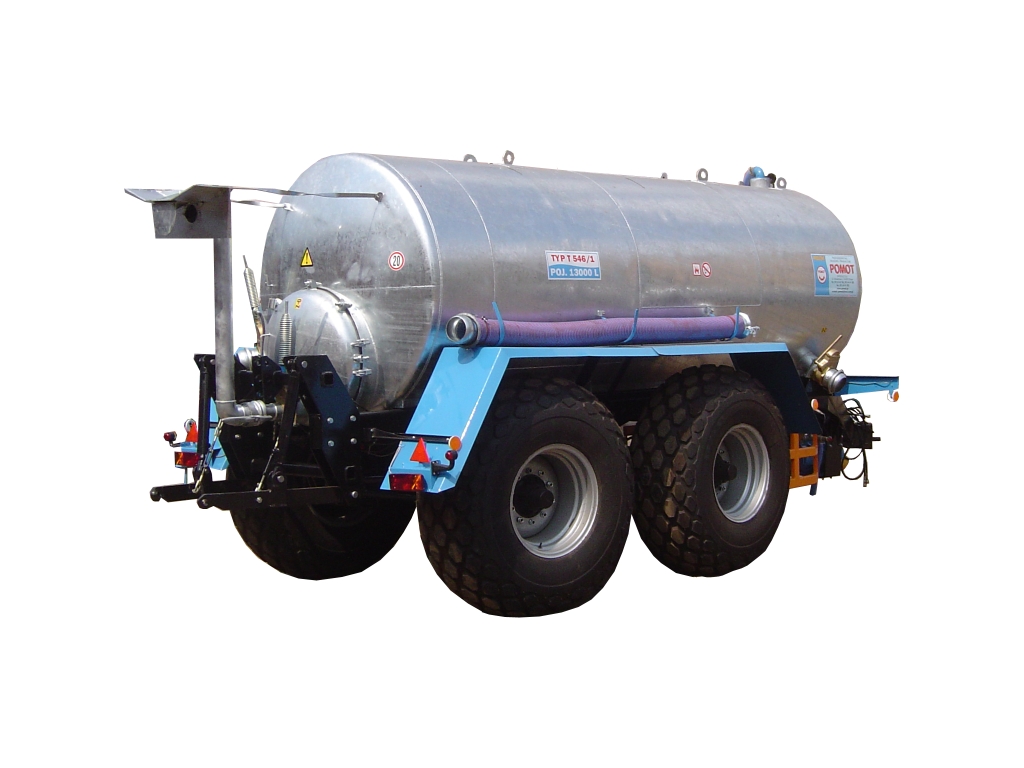

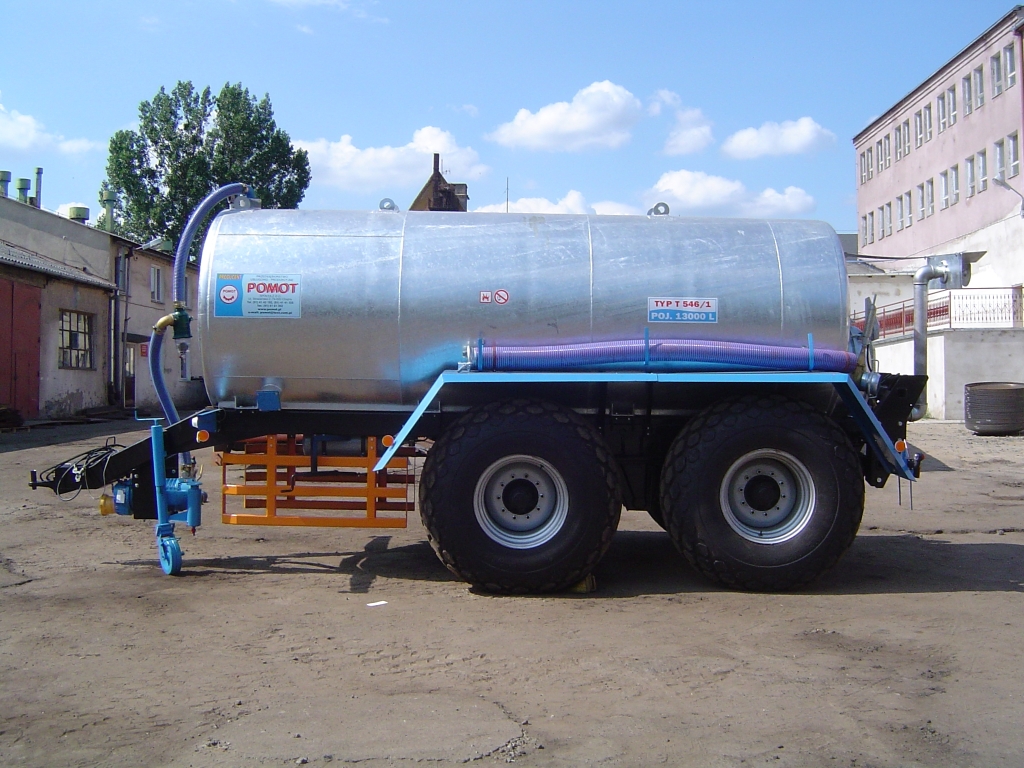

The slurry tank brand POMOT
- Type T546 / 1
- capacity 13,000 liters
- biaxial spring chassis with TANDEM frame construction

Technical and operational data:

• length 7610 mm

• width from 2535 to 2550 mm

• height from 3019 to 3250 mm

• with tires 500/60 x 22,5; 550/60 x 22,5;(depending on version)

• a number of axis two spring axles or TANDEM (central axle)

• wheel track form 1850 to 1900 mm

• emphasis on the hook 16 kN

• 13000 liters capacity

• curb weight 4600 kg

• total weight 17600 kg

• spreading reach

• with a spoon max. 14 m
• Traktor power 96 kW (130KM)
• a time to fill tank by the compressor

• - KD 12000 max. 5 min
  - MEC 9500 or KD 10000 max. 6 min
  - MEC or KD 8000 max. 7 min

The slurry tank type T 546 / 1 at capacity 13000 liters is a completely equipped machine ready to work. It doesn’t need any additional equipment to work.

The vehicle is available in four versions:

MINIMUM, STANDARD, CLASSIC and PREMIUM.

MINIMUM version has a compressor at capacity 8000 L / min, and a pouring spoon with the splash plate. It has no suction hose 6m.
STANDARD version is the implementation of the standard described below.
CLASSIC version has larger tires in relation to the STANDARD version and an additional latch side to fill the vehicle.
PREMIUM version has larger tires than STANDARD and an additional latch side to fill the tank, oil tank 5 L, a triangular and pto.

Specifications and standard equipment:

1. The tank is made of 5mm thick sheet with additional reinforcements

2. Construction of the slurry tank - frame construction - tank mounted on a frame made from section closed

3. Tank hot dip galvanized inside and outside. Inside the container pier with reinforcing frames.

4. Painted frame.

5. Wheelset single axle, two wheels 500/60 x 22,5

6. Compressor with a capacity of 10000 ltr. / min. (flowability of air)

7. The double-ball valve protecting for overflowing the compressor.

8. Galvanized t overflow tank with sight glass and drain tap

9. Oil catcher / silencer.

10. Manowakuometr.

11. Lower hitch latch at height of 400 mm

12. Exchangeable ear hook (screwed)

13. Mechanically controlled parking support.

14. Float level indicator on the front of the tank.

15. Electrical system 12V connector

16. The lighting required by the provisions of the Road Traffic.

17. Service brake - one-way, air.

18. Handbrake parking.

19. Hose 6 "(ø 150) of the suction strainer - suction hose length 6 m.

20. Main drain valve with a diameter of 6 " with the hydraulic control.

21. The rear hatch with a diameter of 700mm.

22. Bottling device - spoon shaped pattern poured POMOT 94, filling the width from 12 to 14m.

23. Painted metallic fenders.

24. Pressure and underpressure safety valve.

25. Blanked rear spigots tap 6 ".

26. Two side connectors on the right and left side, one of them is equipped with an inlet tap 3/ 4 ".

27. Certificate of approval - for registration and moving on public roads at speeds up to 25km / h

28. CE Mark

ADDITIONAL EQUIPMENT

• On request, a vehicle can be adapted to move at speed of 40km / h

• To facilitate the maneuvering of the slurry tank with this capacity and reduce the marks on turnin back the vehicle can be equipped with rear-wheel steered

• The vehicle in frame construction can be adapted to mount the applicator soil fertilization with working width from 2.5 m to 4m. As well as soil fertilization applicator, made in the dragged hoses system (see accessories)

• The slurry tank can be equipped with many accessories (see accessories)

The slurry tank brand POMOT
Type T513 - Capacity 13000 liters
- on the TANDEM suspension
- on BOGIE suspension with frame construction

Technical and operational data:

• length 7610 mm

• width 3000 mm

• height 3250 mm

• with tires 560/60 x 22,5 lub 23.1 x 26 (depending on version)

• a number of axis two sprung axles

• wheel track 1850 mm

• emphasis on the hook 30 kN

• 13000 liters capacity

• curb weight 4600 kg

• total weight 17600 kg

• spreading reach

• with a spoon max. 14 m

  Traktor power 88 kW (117KM)

  a time to fill tank by the compressor:

  KD 12000 max. 5 min

  MEC 9500* or KD 10000 max. 6 min

  MEC or KD 8000 max. 7 min

9500 MEC compressor will be available from October 2009.

The slurry tank type T 513 at capacity 13000 liters is a completely equipped machine ready to work. It doesn’t need any additional equipment to work.

The vehicle is available in four versions:

MINIMUM, STANDARD, CLASSIC and PREMIUM.

MINIMUM version has a compressor at capacity of 10000 L / min, and a pouring spoon with the splash plate. It has no suction hose 6m.
STANDARD version is the implementation of the standard described below.
CLASSIC version has larger tires in relation to the STANDARD version and an additional latch side to fill the vehicle.
PREMIUM version has larger tires than STANDARD and an additional latch side to fill the tank, oil tank 5 L, a triangular and pto

Specifications and standard equipment:

1. The tank is made of 5mm thick sheet with additional reinforcements

2. Construction of the slurry tank - frame construction - tank mounted on a frame made from section closed

3. Tank hot dip galvanized inside and outside. Inside the container pier with reinforcing frames.

4. Painted frame.

5. BOGIE spring suspension, four wheels 560/60 x 22,5

6. Compressor at capacity 10000 ltr. / min. (flowability of air)

7. The double-ball valve protect for overflowing the compressor.

8. Galvanized overflow tank with sight glass and drain tap

9. Oil catcher / silencer.

10. Manowakuometr.

11. Lower hitch latch at a height of 400 mm

12. Exchangeable ear hook (screwed)

13. Mechanically controlled parking support.

14. Float level indicator on the front of the tank.

15. Electrical system 12V connector

16. The lighting required by the provisions of the Road Traffic.

17. Service brake - one-way, air.

18. Handbrake parking.

19. Hose 6 "(ø 150) of the suction strainer - suction hose length 6 m.

20. Main drain valve with a diameter of 6 " with the hydraulic control.

21. The rear hatch with a diameter of 900mm.

22. Bottling device - spoon shaped pattern poured POMOT 94, filling the width from 12 to 14m.

23. Painted metallic fenders.

24. Pressure and underpressure safety valve.

25. Blanked rear spigots tap 6 ".

26. Two side connectors on the right and left side, one of them is equipped with an inlet tap 3/ 4 ".

27. Certificate of approval - for registration and moving on public roads at speeds up to 25km / h

28. CE Mark

ADDITIONAL EQUIPMENT

• On request, the vehicle can be adapted to move at speed of 40km / h

• To facilitate the maneuvering of the slurry tank with this capacity and reduce the marks on turnin back the vehicle can be equipped with rear-wheel steered.

• The vehicle in frame construction can be adapted to mount the applicator soil fertilization with working width from 2.5 m to 4m as well as soil fertilization applicator, made in the dragged hoses system (see accessories)

• The slurry tank can be equipped with many accessories (see accessories)
