The slurry tank brand POMOT with a capacity of 16000 liters
- Type T 546 / 2 – in TANDEM version or two axles sprung
- Type T-516 – on BOGIE suspension with the frame construction

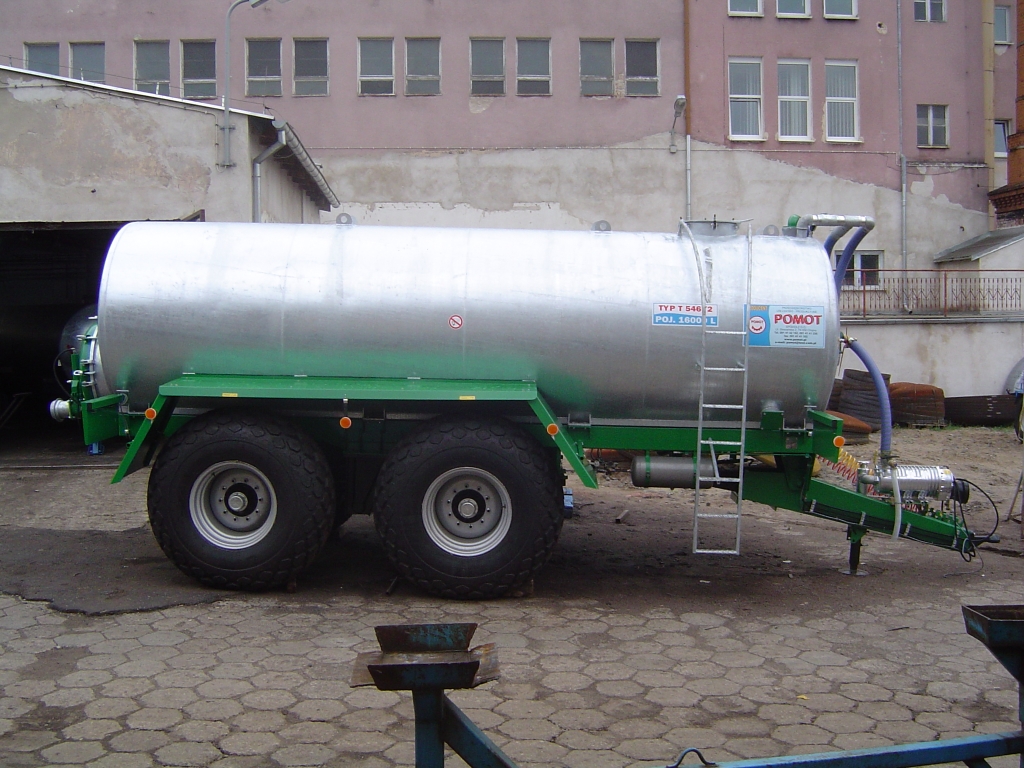

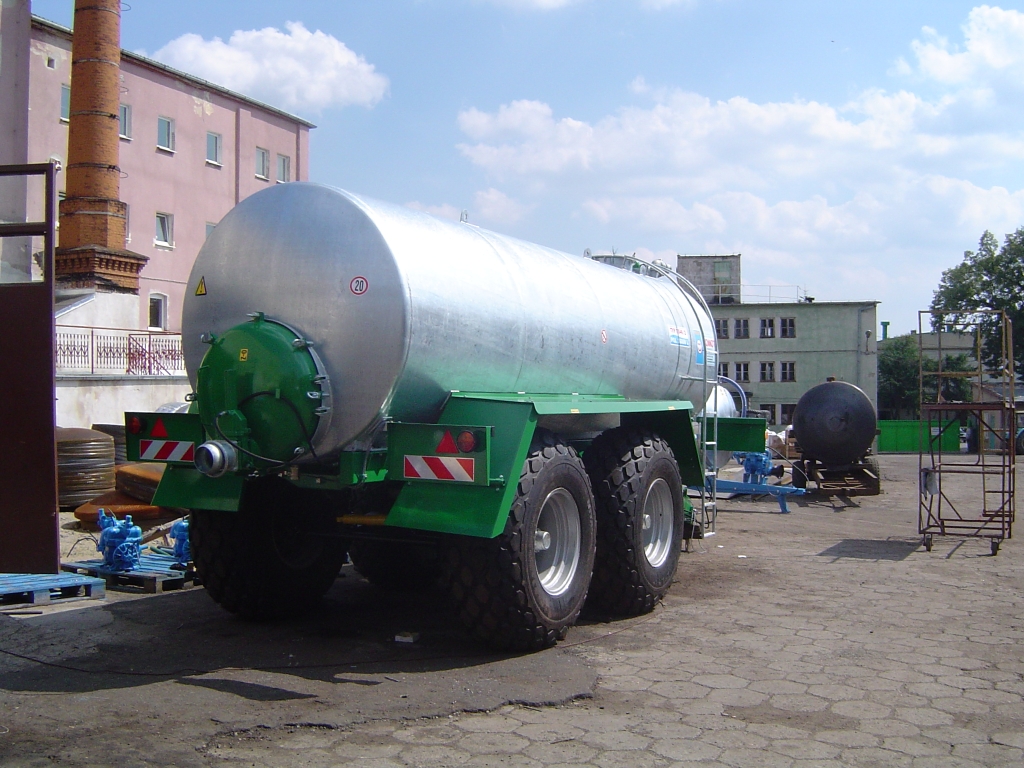

The slurry tank brand POMOT
- TypT 546 / 2
- capacity 16 000 liters
- on the biaxial spring chassis with the frame construction
Technical and operational data:
-
length 8610 mm
-
width from 2535 to 2550 mm
-
height from 3042 to 3250 mm
-
with tires 500/60 x 22,5; 550/60 x 22,5;(depending on version)
-
a number of axis two spring axles
-
wheel track form 1850 to 1900 mm
-
emphasis on the hook 30 kN
-
16000 liters capacity
-
curb weight 5000 kg
-
total weight 21000 kg
-
spreading reach
-
with a spoon max. 14 m
-
Traktor power 120 kW (160KM)
-
a time to fill tank by the compressor
KD 12000 max. 5 min
MEC 9500* or KD 10000 max. 6 min
MEC or KD 8000 max. 8 min
MEC 9500 compressor will be available from October 2009.
The slurry tank type T 546 / 2 at capacity 16000 liters is a completely equipped machine ready to work. It doesn’t need any additional equipment to work.
The vehicle is available in four versions: MINIMUM, STANDARD, CLASSIC and PREMIUM.
MINIMUM version has a compressor at capacity 8000 L / min, and a pouring spoon with the splash plate. It has no suction hose 6m.
STANDARD version is the implementation of the standard described below.
CLASSIC version has larger tires in relation to the STANDARD version and an additional latch side to fill the vehicle.
PREMIUM version has larger tires than STANDARD and an additional latch side to fill the tank, oil tank 5 L, a triangular and pto
Specifications and standard equipment:
-
The tank is made of 5mm thick sheet with additional reinforcements
-
Construction of the slurry tank - frame construction - tank mounted on a frame made from section closed
-
Tank hot dip galvanized inside and outside. Inside the container pier with reinforcing frames.
-
Painted frame.
-
Wheelset single axle, two wheels 500/60 x 22,5
-
Compressor at capacity 10000 ltr. / min. (flowability of air)
-
The double-ball valve protecting for overflowing the compressor.
-
Galvanized t overflow tank with sight glass and drain tap
-
Oil catcher / silencer.
-
Manowakuometr.
-
Lower hitch latch at height of 400 mm
-
Exchangeable ear hook (screwed)
-
Mechanically controlled parking support.
-
Float level indicator on the front of the tank.
-
Electrical system 12V connector
-
The lighting required by the provisions of the Road Traffic.
-
Service brake - one-way, air.
-
Handbrake parking.
-
Hose 6 "(ø 150) of the suction strainer - suction hose length 6 m.
-
Main drain valve with a diameter of 6 " with the hydraulic control.
-
The rear hatch with a diameter of 900mm.
-
Bottling device - spoon shaped pattern poured POMOT 94, filling the width from 12 to 14m.
-
Painted metallic fenders.
-
Pressure and underpressure safety valve.
-
Blanked rear spigots tap 6 ".
-
Two side connectors on the right and left side, one of them is equipped with an inlet tap 3/ 4 ".
-
Certificate of approval - for registration and moving on public roads at speeds up to 25km / h
-
CE Mark
ADDITIONAL EQUIPMENT
-
On request, a vehicle can be adapted to move at speed of 40km/h
-
To facilitate the maneuvering of the slurry tank with this capacity and reduce the marks on turnin back the vehicle can be equipped with rear-wheel steered
-
The vehicle in frame construction can be adapted to mount the applicator soil fertilization with working width from 2.5 m to 4m. As well as soil fertilization applicator, made in the dragged hoses system (see accessories)
-
The slurry tank can be equipped with many accessories (see accessories)
![16000 pomot beczkowóz güllefass slurry tanker obr 2](/images/wozy_ascenizacyjne/16000l/16000_pomot_beczkowóz_güllefass_slurry_tanker_obr_2.jpg)
![ico 06](/images/ico/ico_06.jpg)
http://w.pomot.pl/en/offer/slurry-tanks/16000l.html#sigProId6c360e5b49

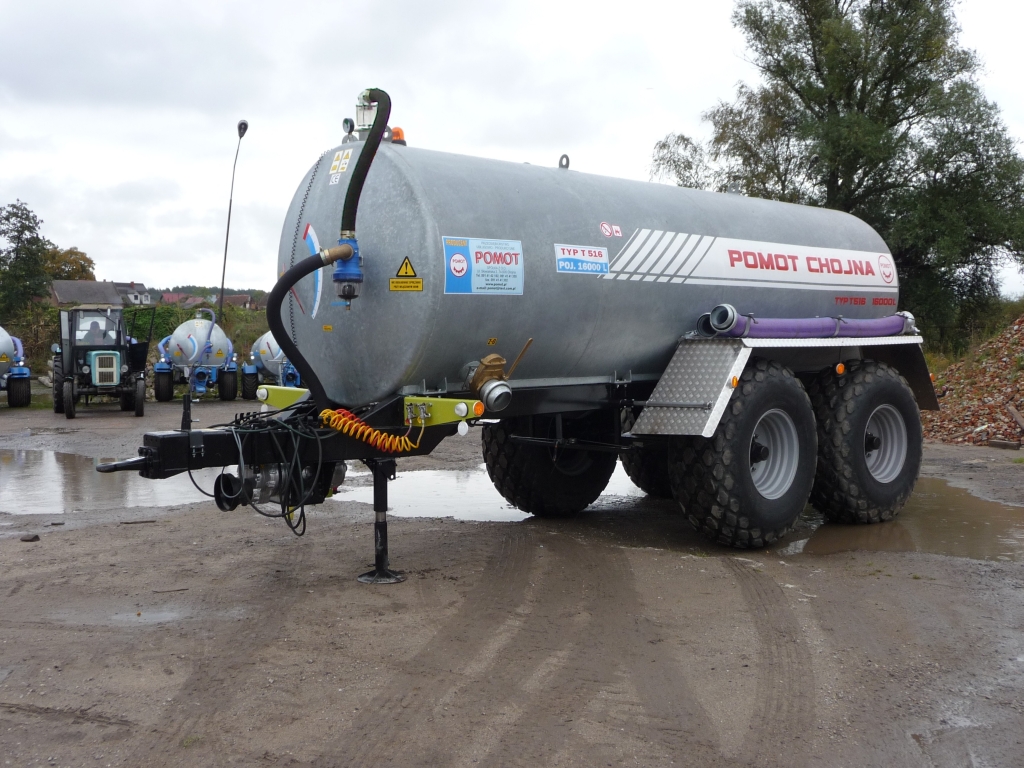

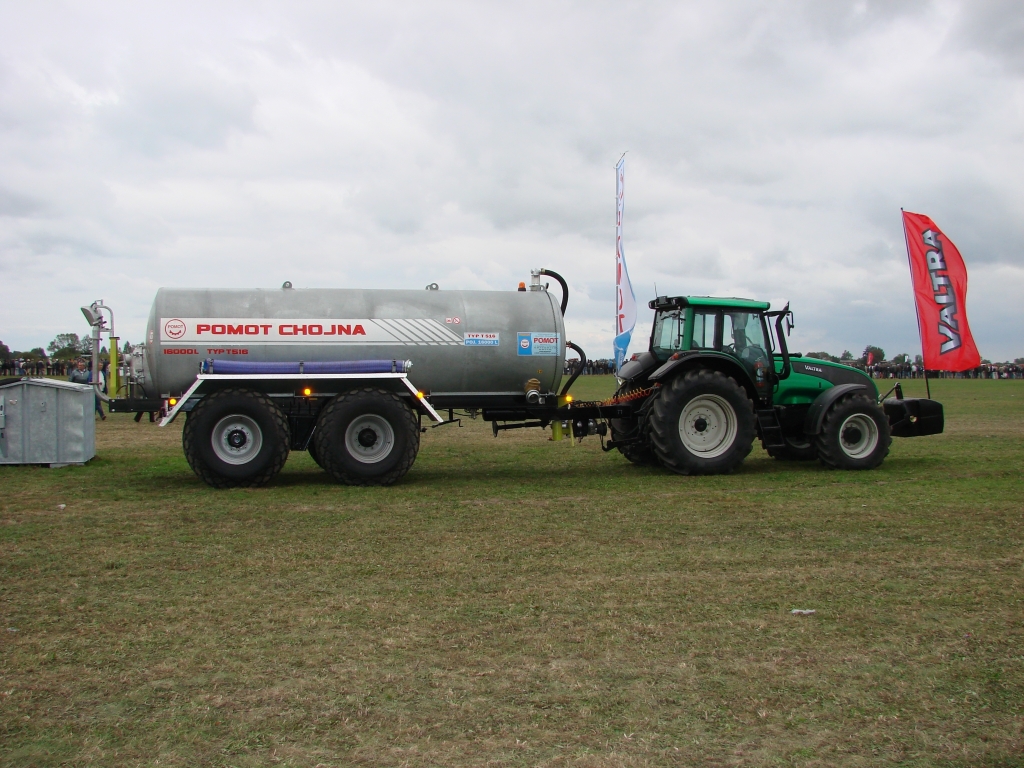

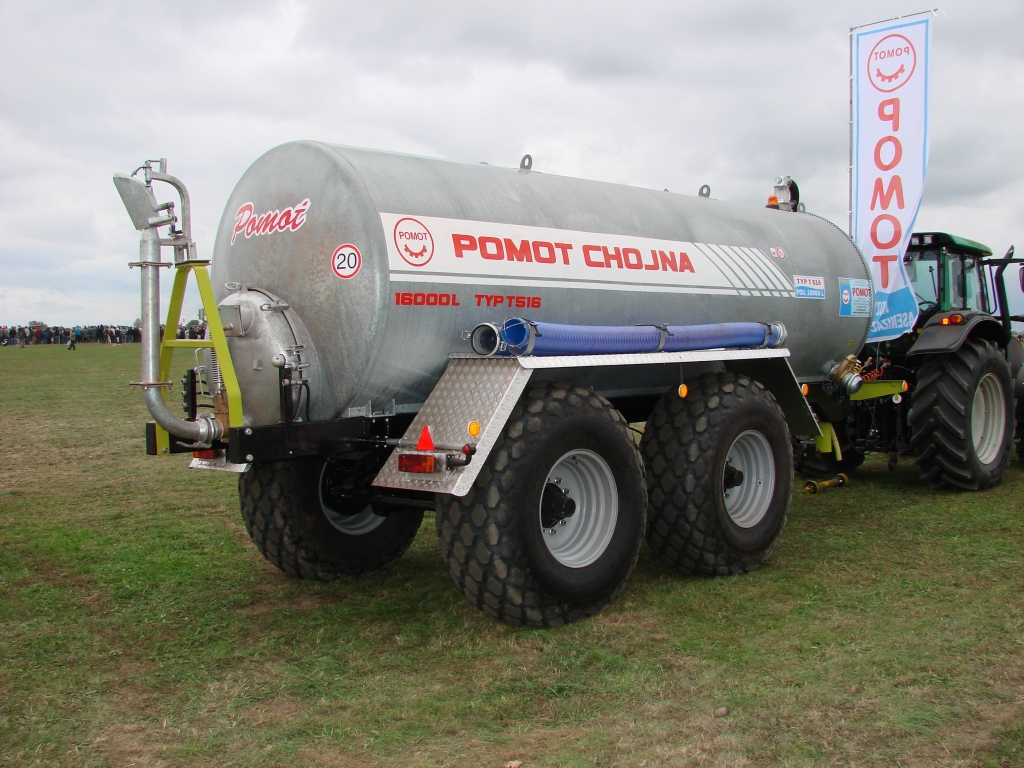

The slurry tank brand POMOT
- Type T516
- capacity 16,000 liters
- on the BOGIE suspension with the frame construction
Technical and operational data:
-
length 8610 mm
-
width 3000 mm
-
height 3250 mm
-
with tires 560/60 x 22,5 lub 23.1 x 26 (depending on version)
-
a number of axis two sprung axles
-
wheel track 2200 mm
-
emphasis on the hook 30 kN
-
16000 liters capacity
-
curb weight 5000 kg
-
total weight 21000 kg
-
spreading reach
-
with a spoon max. 14 m
-
Traktor power 118 kW (157KM)
-
a time to fill tank by the compressor
- KD 12000 max. 5 min
- MEC 9500* or KD 10000 max. 6 min
- MEC or KD 8000 max. 7 min
9500 MEC compressor will be available from October 2009.
The slurry tank type T 516 at capacity 16000 liters is a completely equipped machine ready to work. It doesn’t need any additional equipment to work.
The vehicle is available in four versions:
MINIMUM, STANDARD, CLASSIC and PREMIUM.
MINIMUM version has a compressor at capacity 8000 L / min, and a pouring spoon with the splash plate. It has no suction hose 6m.
STANDARD version is the implementation of the standard described below.
CLASSIC version has larger tires in relation to the STANDARD version and an additional latch side to fill the vehicle.
PREMIUM version has larger tires than STANDARD and an additional latch side to fill the tank, oil tank 5 L, a triangular and pto
Specifications and standard equipment:
-
The tank is made of 5mm thick sheet with additional reinforcements
-
Construction of the slurry tank - frame construction - tank mounted on a frame made from section closed
-
Tank hot dip galvanized inside and outside. Inside the container pier with reinforcing frames.
-
Painted frame.
-
Sprung suspension BOGIE, four wheels 560/60 x 22,5
-
Compressor at capacity 10000 ltr. / min. (flowability of air)
-
The double-ball valve protect for overflowing the compressor.
-
Galvanized overflow tank with sight glass and drain tap
-
Oil catcher / silencer.
-
Manowakuometr.
-
Lower hitch latch at a height of 400 mm
-
Exchangeable ear hook (screwed)
-
Mechanically controlled parking support.
-
Float level indicator on the front of the tank.
-
Electrical system 12V connector
-
The lighting required by the provisions of the Road Traffic.
-
Service brake - one-way, air.
-
Handbrake parking.
-
Hose 6 "(ø 150) of the suction strainer - suction hose length 6 m.
-
Main drain valve with a diameter of 6 " with the hydraulic control.
-
The rear hatch with a diameter of 900mm.
-
Bottling device - spoon shaped pattern poured POMOT 94, filling the width from 12 to 14m.
-
Painted metallic fenders.
-
Pressure and underpressure safety valve.
-
Blanked rear spigots tap 6 ".
-
Two side connectors on the right and left side, one of them is equipped with an inlet tap 3/ 4 ".
-
Certificate of approval - for registration and moving on public roads at speeds up to 25km / h
-
CE Mark
ADDITIONAL EQUIPMENT
-
On request, the vehicle can be adapted to move at speed of 40km / h
-
To facilitate the maneuvering of the slurry tank with this capacity and reduce the marks on turnin back the vehicle can be equipped with rear-wheel steered.
-
The vehicle in frame construction can be adapted to mount the applicator soil fertilization with working width from 2.5 m to 6 m as well as soil fertilization applicator, made in the dragged hoses system (see accessories)
-
The slurry tank can be equipped with many accessories (see accessories)
