Type T544/1

6700 L capacity

single axis with a frame and self-supporting construction



Technical and operational data:

  • length 5160 mm

  • width 2435 mm

  • height 2550 mm

  • with tires 500/60 x 22,5; 550/60 x 22,5;(depending on version)

  • a number of axis 1

  • wheel track 1900 mm

  • emphasis on the hook 14 kN

  • 6700 liters capacity

  • curb weight 2150 kg

  • total weight 8850 kg

  • spreading reach

  • with a spoon max. 14 m

  • Traktor power 56 kW (75KM)

  • a time to fill tank by the compressor

  • - MEC lub KD 6500 max.4 min

  • MEC lub KD 5000 max.5 min



The slurry tank type T 544 / 1 at capacity 6700 liters is a completely equipped machine ready to work. It doesn’t need any additional equipment to work.

The vehicle is available in four versions:

MINIMUM, STANDARD, CLASSIC and PREMIUM.



MINIMUM version has a compressor at capacity 5000 L / min, and a pouring spoon with the splash plate. It has no suction hose 6m.
STANDARD version is the implementation of the standard described below.
CLASSIC version has larger tires in relation to the STANDARD version and an additional latch side to fill the vehicle.
PREMIUM version has larger tires than STANDARD and an additional latch side to fill the tank, oil tank 5 L, a triangular and pto



Specifications and standard equipment:



  1. The tank is made of 5mm thick sheet with additional reinforcements

  2. Construction of the slurry tank:

  • Self-supporting construction of the vehicle - towing bar attached to the reinforced supports in the tank.

  • Frame construction - tank mounted on a frame made from section closed

  1. Tank hot dip galvanized inside and outside. Inside the container pier with reinforcing frames.

  2. Painted towing bar or the frame.

  3. Wheelset single axle, two wheels 500/60 x 22,5

  4. Compressor at capacity 6500 ltr. / min. (flowability of air)

  5. The double-ball valve protecting for overflowing the compressor.

  6. Siphon ø60 the clarifier and drain tap.

  7. Oil catcher / silencer.

  8. Manowakuometr.

  9. Lower hitch latch at height of 400 mm

  10. Exchangeable ear hook (screwed)

  11. Mechanically controlled parking support.

  12. Float level indicator on the front of the tank.

  13. Electrical system 12V connector

  14. The lighting required by the provisions of the Road Traffic.

  15. Service brake - one-way, air.

  16. Handbrake parking.

  17. Hose 4 "(ø 110) of the suction strainer - suction hose length 6 m.

  18. Main drain valve with a diameter of 6 " with the hydraulic control.

  19. The rear hatch with a diameter of 900mm.

  20. Bottling device - spoon shaped pattern poured POMOT 94, filling the width from 12 to 14m.

  21. Painted metallic fenders.

  22. Pressure and underpressure safety valve.

  23. Blanked rear spigots tap 6 ".

  24. Two side connectors on the right and left side, one of them is equipped with an inlet tap 3/ 4 ".

  25. Certificate of approval - for registration and moving on public roads at speeds up to 25km / h

  26. CE Mark





ADDITIONAL EQUIPMENT

  • On request, a vehicle can be adapted to move at a speed of 40km / h



  • The vehicle in version with frame construction can be adapted to mount the applicator soil fertilization with working width from 2.5 m to 4m. (see accessories)



WARNING!
The slurry tanker at capacity 6700 L is also available on the TANDEM suspension, as described below:

6700 pomot beczkowóz güllefass slurry tanker





6700 pomot beczkowóz güllefass slurry tanker selfsupport
ico 03Downloads

Specyfikacja - PDF
Ulotka informacyjna - PDF


Slurry tanker brand POMOT

Type T544/1

6700 L capacity

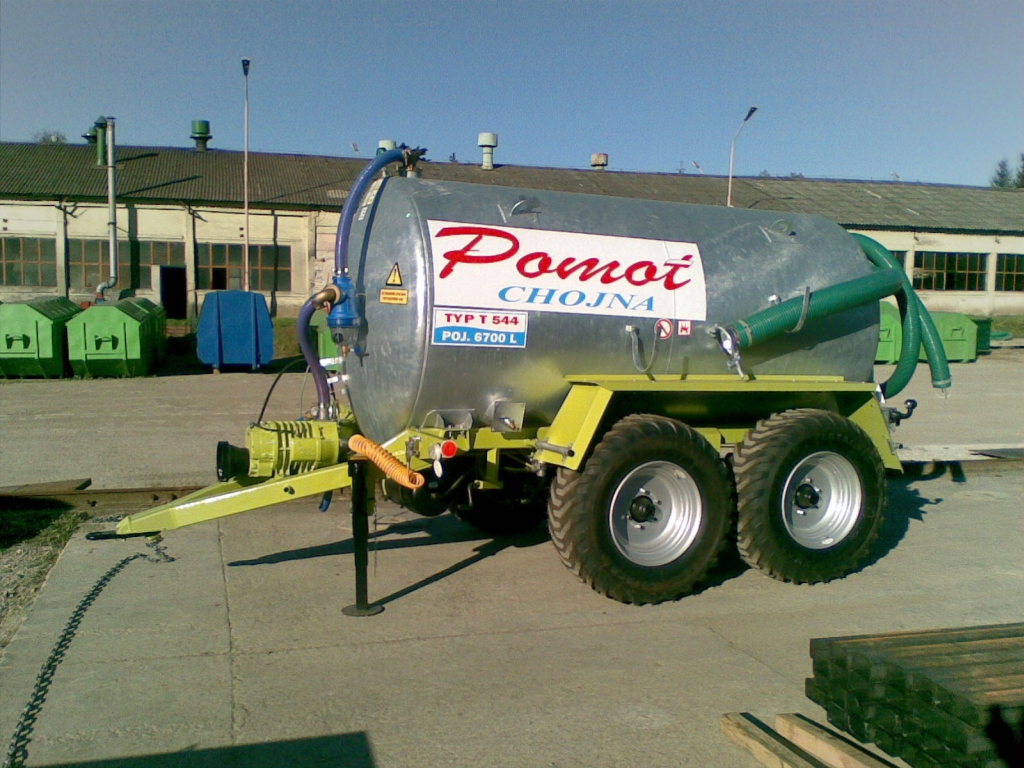

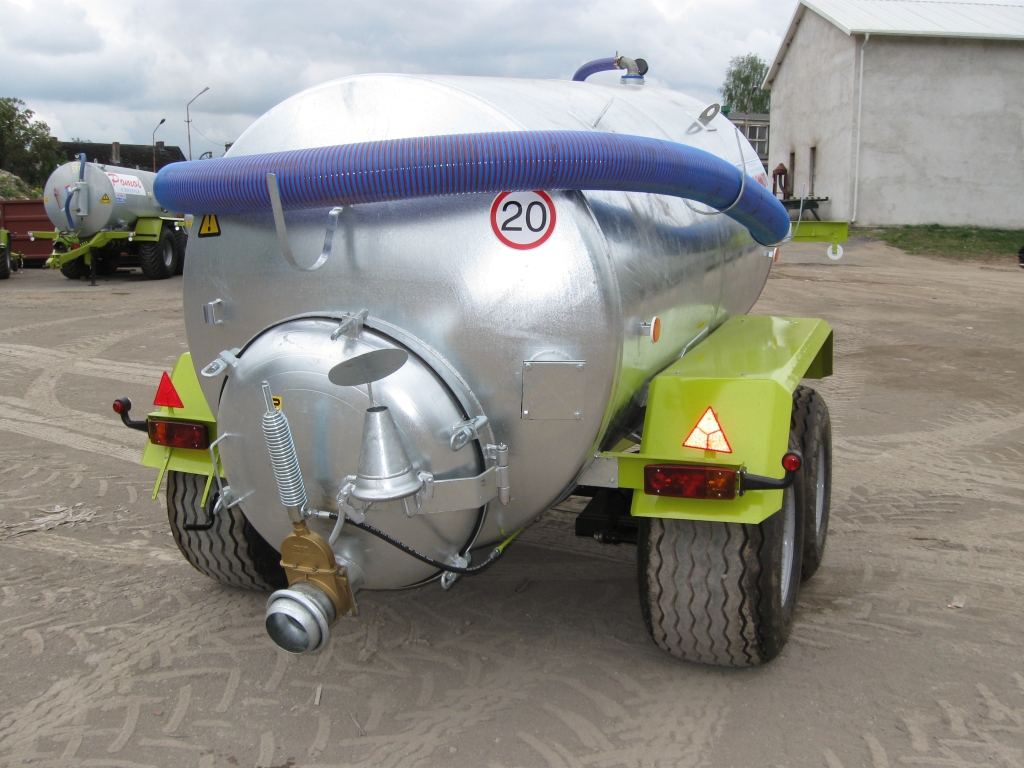

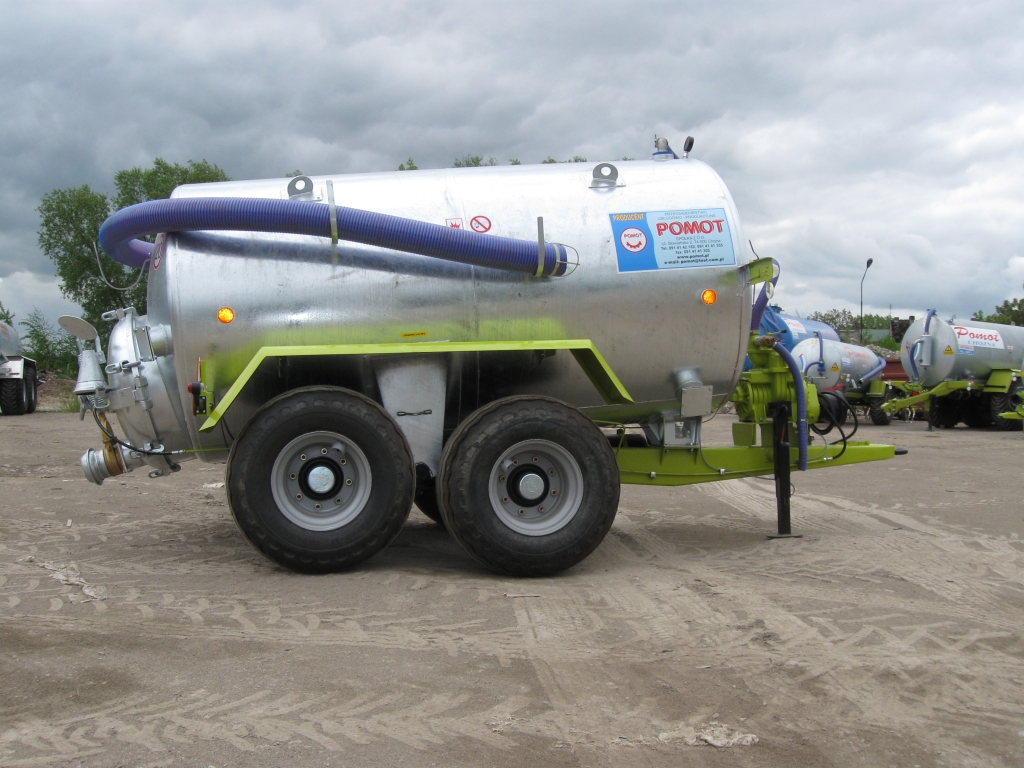

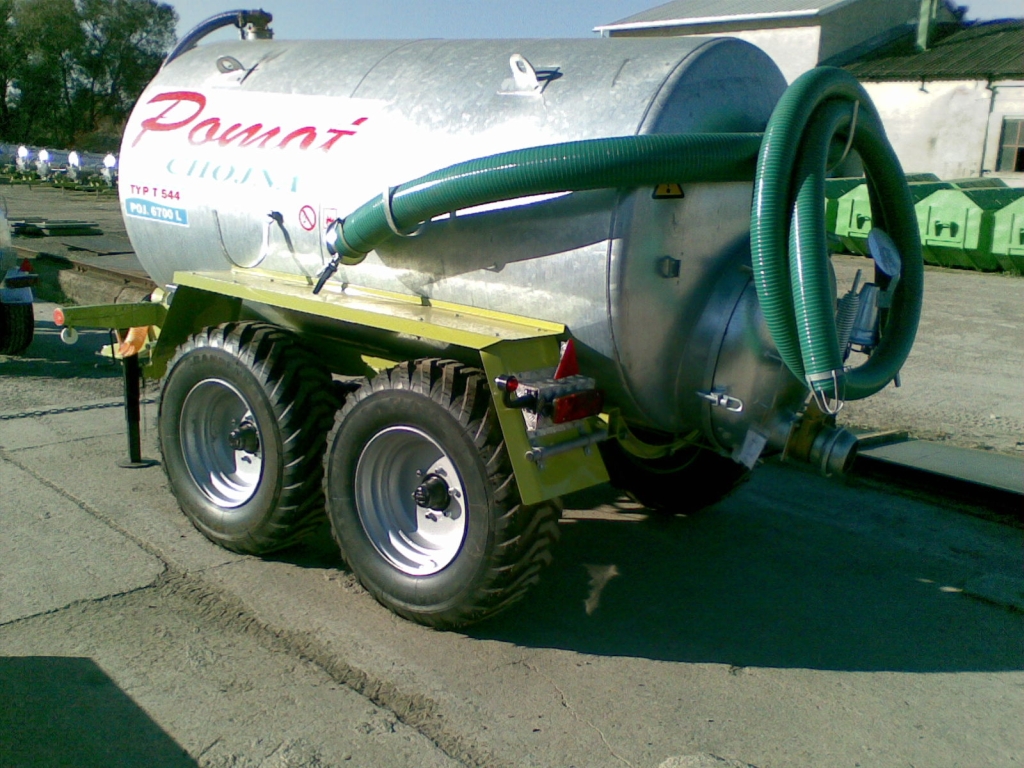

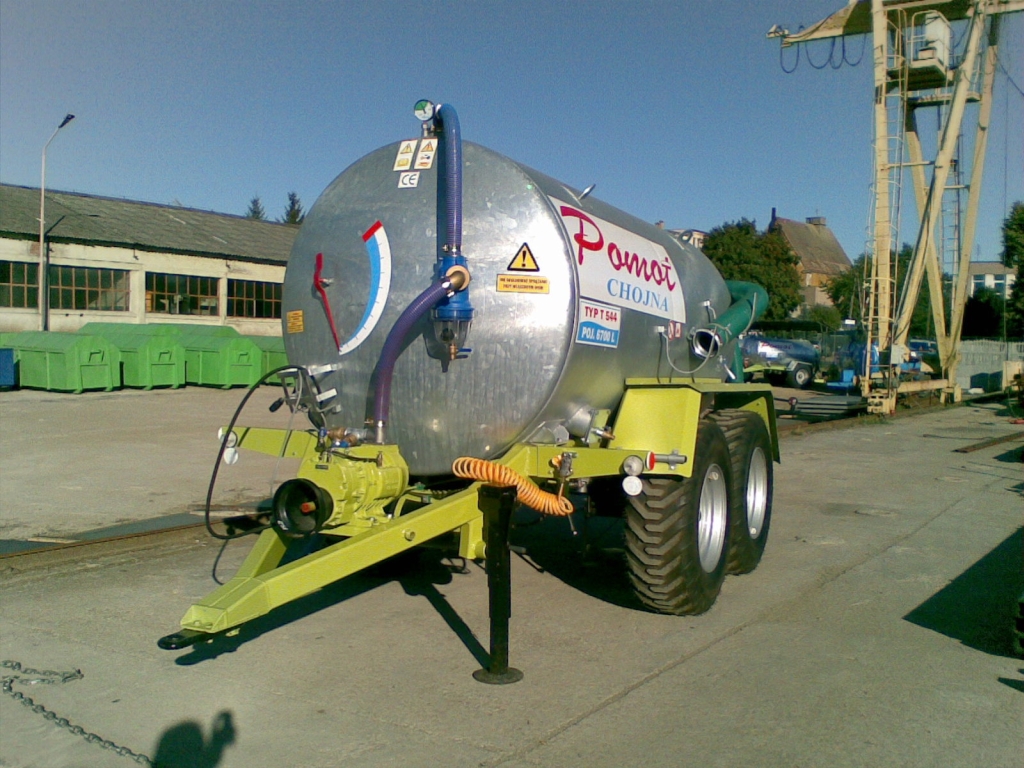

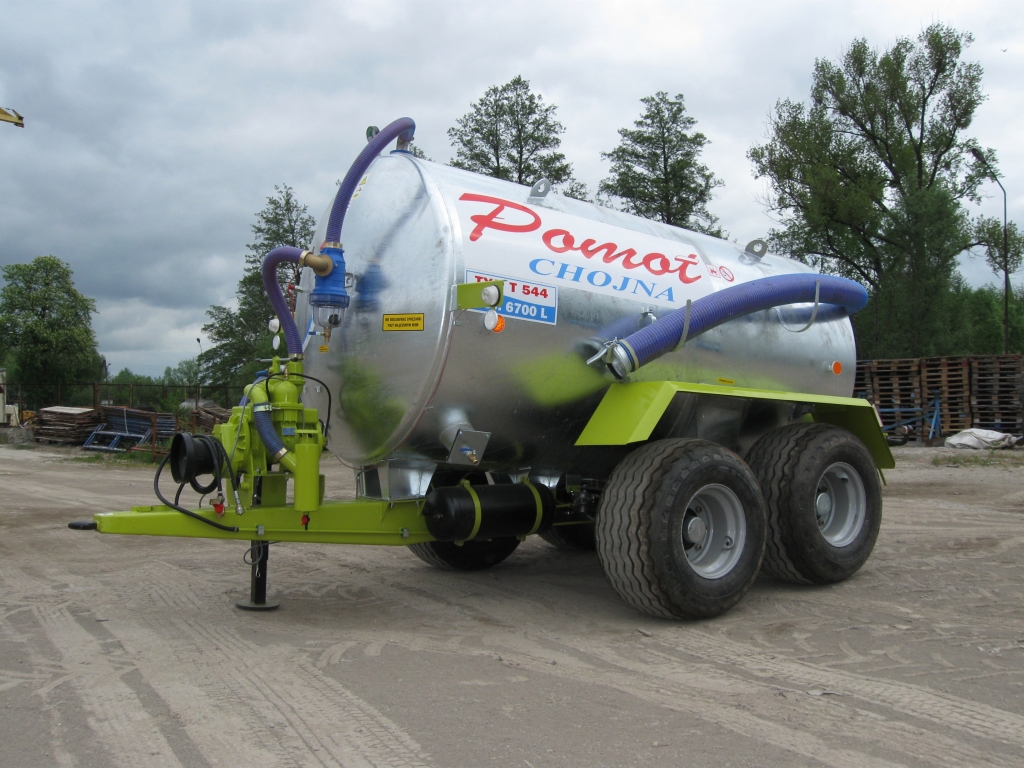

on the TANDEM suspension

with a frame and self-supporting construction



Technical and operational data:

  • length 5130 mm

  • width 2370 mm

  • height 2480 mm

  • with 385/65R x 22,5; 400R x 22,5(depending on version)

  • a number of axis 1 (central axis) 4 wheels

  • wheel track 1950 mm

  • emphasis on the hook 14 kN

  • 6700 liters capacity

  • curb weight 2150 kg

  • total weight 8850 kg

  • spreading reach

  • with a spoon max. 14 m

  • Traktor power 56 kW (75KM)

  • a time to fill tank by the compressor

  • - MEC lub KD 6500 max.4 min

  • MEC lub KD 5000 max.5 min



The slurry tanker type T 544 / 1 at capacity 6700 liters is a completely equipped machine ready to work. It doesn’t need any additional equipment to work.

The vehicle is available in four versions:

MINIMUM, STANDARD, CLASSIC and PREMIUM.



MINIMUM version has a compressor at capacity 5000 L / min, and a pouring spoon with the splash plate. It has no suction hose 6m.
STANDARD version is the implementation of the standard described below.
CLASSIC version has larger tires in relation to the STANDARD version and an additional latch side to fill the vehicle.
PREMIUM version has larger tires than STANDARD and an additional latch side to fill the tank, oil tank 5 L, a triangular and pto



Specifications and standard equipment:



  1. The tank is made of 5mm thick sheet with additional reinforcements

  2. Construction of the slurry tank:

  • Self-supporting construction of the vehicle - towing bar attached to the reinforced supports in the tank.

  • Frame construction - tank mounted on a frame made from section closed

  1. Tank hot dip galvanized inside and outside. Inside the container pier with reinforcing frames.

  2. Painted towing bar or the frame.

  3. TANDEM wheelset with a reinforced structure (four wheels 385/65R x 22.5)]

  4. Compressor with a capacity of 6500 ltr. / min. (flowability of air)

  5. The double-ball valve protect for overflowing the compressor.

  6. Siphon ø60 the clarifier and drain tap.

  7. Oil catcher / silencer.

  8. Manowakuometr.

  9. Lower hitch latch at a height of 400 mm

  10. Exchangeable ear hook (screwed)

  11. Mechanically controlled parking support.

  12. Float level indicator on the front of the tank.

  13. Electrical system 12V connector

  14. The lighting required by the provisions of the Road Traffic.

  15. Service brake - one-way, air.

  16. Handbrake parking.

  17. Hose 4 "(ø 110) of the suction strainer - suction hose length 6 m.

  18. Main drain valve with a diameter of 6 " with the hydraulic control.

  19. The rear hatch with a diameter of 900mm.

  20. Bottling device - spoon shaped pattern poured POMOT 94, filling the width from 12 to 14m.

  21. Painted metallic fenders.

  22. Pressure and underpressure safety valve.

  23. Blanked rear spigots tap 6 ".

  24. Two side connectors on the right and left side, one of them is equipped with an inlet tap 3/ 4 ".

  25. Certificate of approval - for registration and moving on public roads at speeds up to 25km / h

  26. CE Mark





ADDITIONAL EQUIPMENT

  • On request, a vehicle can be adapted to move at a speed of 40km / h



  • The vehicle in version with frame construction can be adapted to mount the applicator soil fertilization with working width from 2.5 m to 4m. (see accessories)



WARNING!
The slurry tanker at capacity 6700 liters can be prepared on the biaxial, sprung suspension on special order.
